PTK103 Industrial Intelligent Temperature Switch
Fully digitized, switch movement value adjustable in full range
控制点可在零点和满点之间现场随意设定
4-Bit LED shows current pressure value, no error in display value
按键调教及现场设置各种参数,操作方便
Temperature preset switching point and delay switching output
两路开关量输出(NPN/PNP),带载能力1.2A

Overview

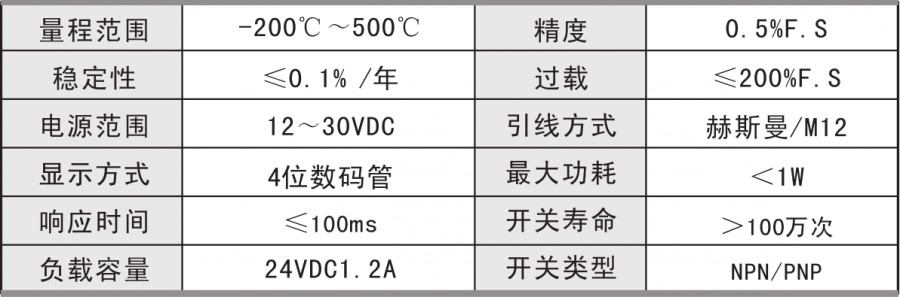

Specification

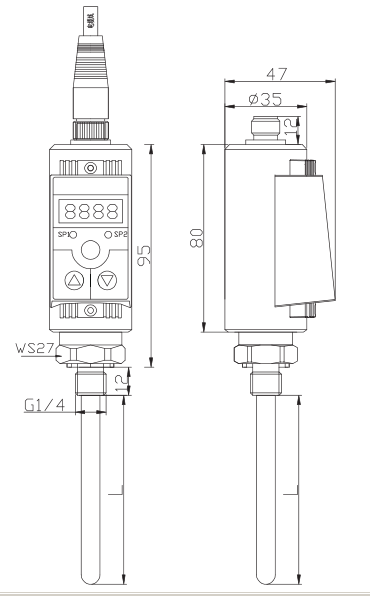

Structure

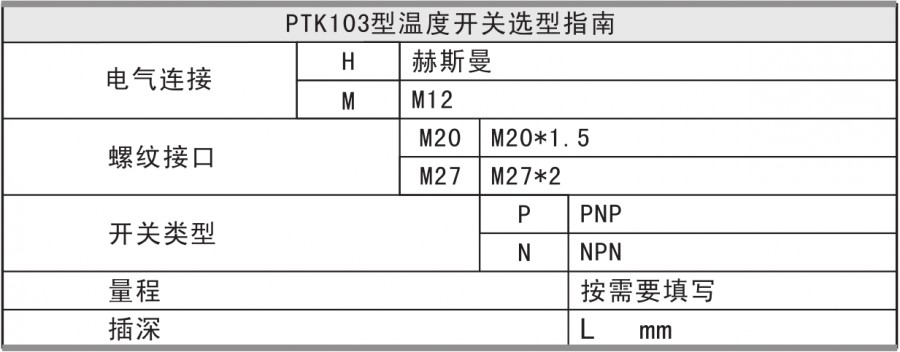

Model Selection

The PTK103 smart temperature switch is an intelligent digital pressure measurement and control product that integrates temperature measurement, display, output, and control. Stainless steel connector, high precision PT100, full digital circuit board composition, visual display, simple operation, safe and reliable, switch point site settings. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries to measure and control the temperature of the fluid medium.
