PTK102 Industrial Intelligent Temperature Switch
Fully digitized, switch movement value adjustable in full range
温度预设开关点和延滞切换输出
4-Bit LED shows current temperature, no error in display value
控制点可在零点和满点之间现场随意设定
Switching rate, 300 times per second.
两路开关量输出(NPN/PNP继电器),带载能力1.2A/3A

Overview

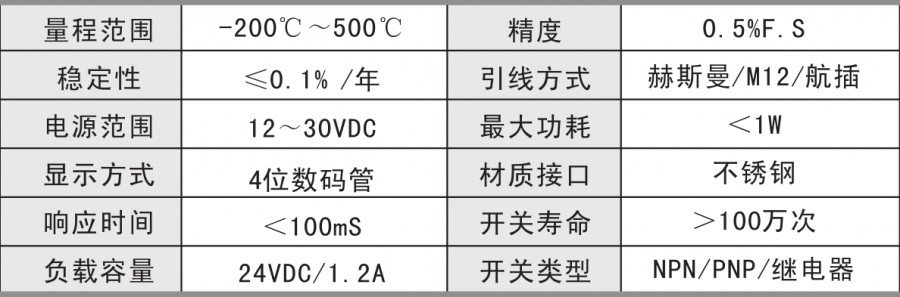

Specification

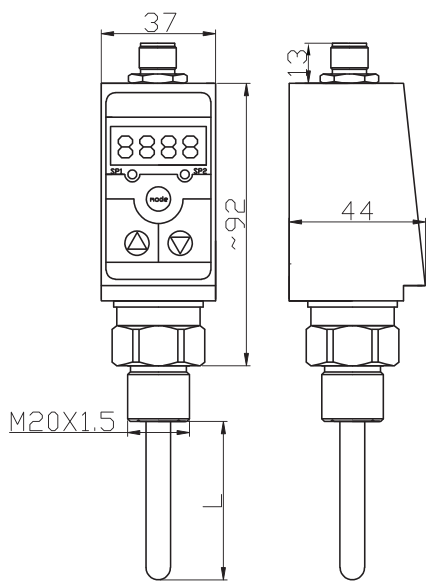

Structure

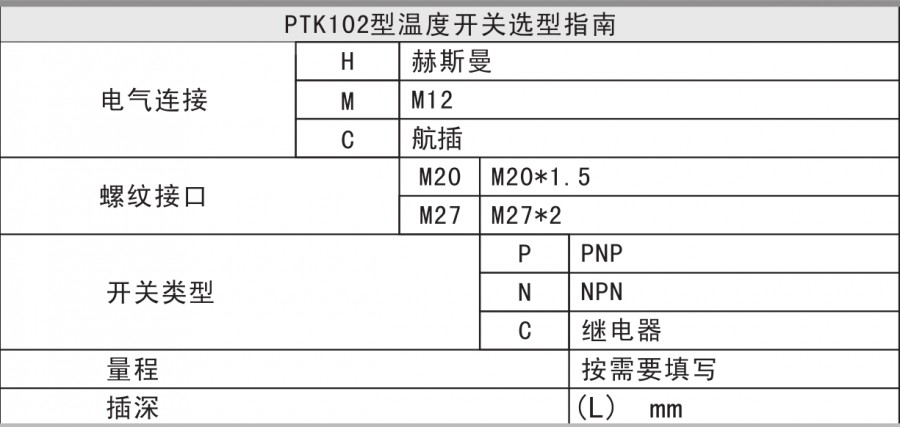

Model Selection

The PTK102 smart digital temperature switch is an intelligent digital temperature measurement and control product that integrates temperature measurement, display, output, and control. Stainless steel connector, high precision PT100, full digital circuit board composition, visual display, simple operation, safe and reliable, switch point site settings. It is widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries to measure and control the temperature of the fluid medium.
