PTB 103 temperature transmitter
4-20mA & amp; RS485 double output
无源量程迁移、缩放
Multiple range unit selection, field temperature unit switching
LCD digital display, current, temperature, percentage optional

Overview

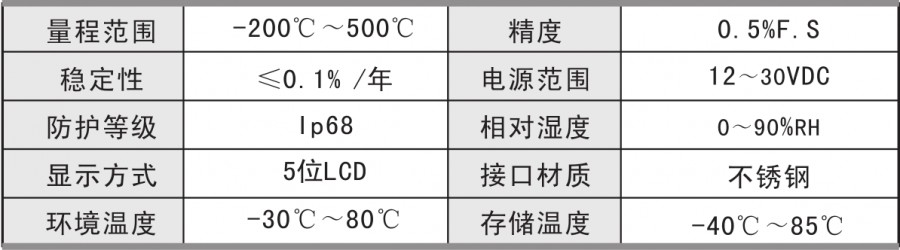

Specification

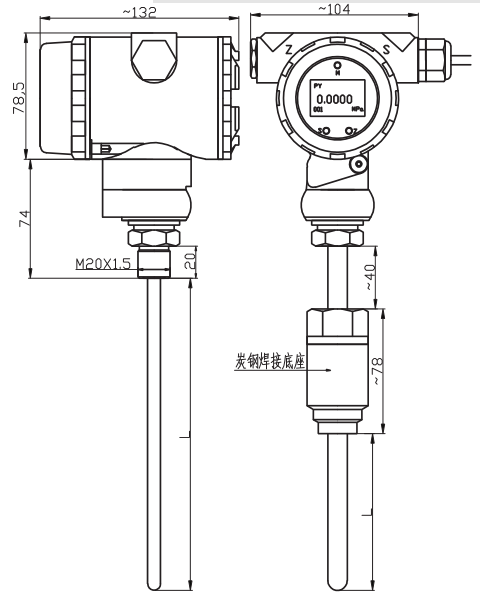

Structure

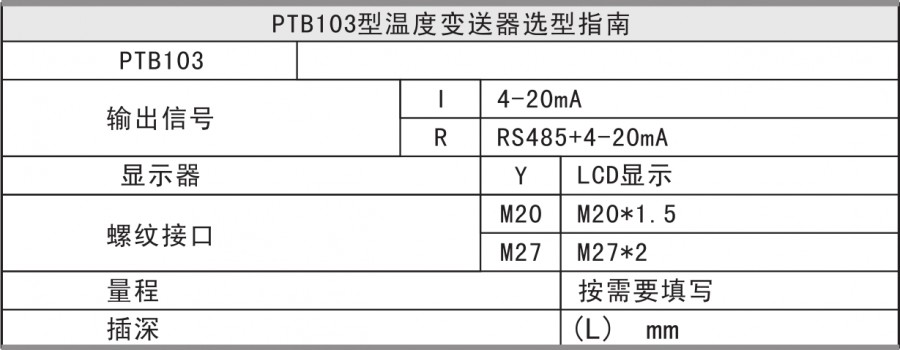

Model Selection


The PTB103 uses an imported temperature sensitive element and is processed by a dedicated integrated circuit to output a 4-20mA current signal and an RS485 digital signal. The product has the characteristics of high precision, good stability, long life, high reliability, and convenient installation. Suitable for measuring fluid temperature in petroleum and chemical industry.
