PYK106 Industrial Intelligent Pressure Controller

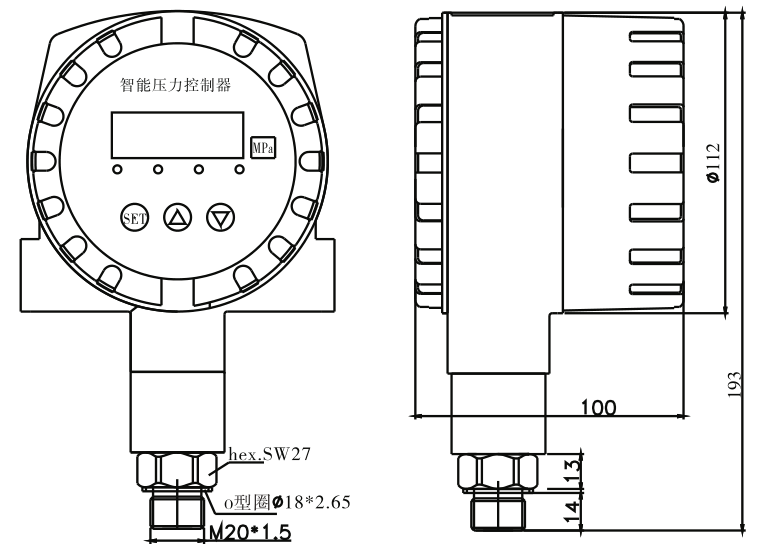

Φ 100 Standard Instrument Installation
控制点可在零点和满点之间现场随意设定
Double 4-Bit LED digital tube display with no display value error
按键调教及现场设置各种参数,操作方便
Pressure preset switching point and delay switching output
五路继电器输出,继电器容量24VDC1.2A/220VAC3A

Overview

Specification

Structure

Model Selection


The PYK106 intelligent pressure controller is an intelligent digital pressure measurement and control product that integrates pressure measurement, dual-screen display, multiple outputs, and five-way control. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the pressure of the fluid medium is measured and controlled, and the output(4-20mA) and RS485 network can be transmitted.
